Trifield TF2 Review: Specs, Measurement Modes, and Limits

A source-based TriField TF2 buying guide, not a hands-on test: field coverage, accuracy conditions, dated owner context and a private observation log.

BenchPicked editorial desk · Revised 2026-10-12 · Sources and method

Is the TF2 right for you?

Shortlist TF2 for separate AC magnetic/electric screening and RF observations inside its documented bands. Skip it if your task is DC, below 20 MHz RF or above 6 GHz RF.
Use Standard mode when comparing ordinary field-strength records. Keep Weighted MAG/ELEC in separate series; there is no Weighted RF setting.
A source-finding indication is not a frequency-specific transmitter diagnosis, a calibrated compliance result or a health verdict. If that is your purchase goal, obtain application-specific expertise before buying accessories.

Related buying option

Consider Trifield TF2

Check the TF2 listing on Amazon for current price, included accessories and delivery options.

Check price on Amazon^*

(paid link) We may earn a commission from Amazon. Price and availability may change.

What the TF2 can measure

AC magnetic, AC electric and RF are separate measurements. Only the magnetic sensor is three-axis. Accuracy at one reference frequency does not establish the same accuracy across the entire band.

Manufacturer specifications, with conditions and source locators
Decision input	TriField TF2
AC magnetic band	40 to 100000 Hz AC magnetic frequency coverage; not DC magnetic fields. Manual Manual v2.1 p2 and product specification table: AC Magnetic Frequency Range · Checked 2026-10-11
AC electric band	40 to 100000 Hz AC electric frequency coverage; not static electric fields. Manual Manual v2.1 p2 and product specification table: AC Electric Frequency Range · Checked 2026-10-11
RF band	20000000 to 6000000000 Hz 20 MHz to 6 GHz. A 6 GHz upper limit does not cover every 6 GHz Wi-Fi channel or mmWave 5G band. Manual Manual v2.1 pp2,5; product table: RF/Microwave Frequency Range · Checked 2026-10-11
Magnetic sensor	3 axes Magnetic reading depends on meter location, not where its top points. Manual Manual v2.1 pp2,4 · Checked 2026-10-11
Electric sensor	1 axis Directional. Point the top toward the source; hand and body placement affect the reading. Official source Manual v2.1 pp4,5 and product table: AC Electric 1-axis · Checked 2026-10-11
RF sensor	1 axis Directional. Keep orientation and handling consistent; a low reading in one direction is not a room-wide survey. Official source Manual v2.1 pp4,5 and product table: RF/Microwave 1-axis · Checked 2026-10-11
Magnetic display limit	100 mG Resolution 0.1 mG. An over-range display is not an exact value and must not be recorded as 100 mG. Official source Product table: AC Magnetic Maximum Range and Resolution; manual v2.1 p8 · Checked 2026-10-11
Electric display limit	1000 V/m Resolution 1 V/m. Over-range is a censored observation, not a measured 1000 V/m. Official source Product table: AC Electric Maximum Range and Resolution; manual v2.1 p8 · Checked 2026-10-11
RF display limit	19.999 mW/m2 Resolution 0.001 mW/m2. Over-range must be retained separately from a numeric observation. Official source Product table: RF/Microwave Maximum Range and Resolution; manual v2.1 p8 · Checked 2026-10-11
Magnetic accuracy claim	+/-4% at 50/60 Hz Manufacturer specification at the stated reference frequencies, not independent validation or a full-band error bound. Official source Product specification table: AC Magnetic Accuracy · Checked 2026-10-11
Electric accuracy claim	+/-5% at 50/60 Hz Manufacturer specification at the stated reference frequencies, not independent validation or a full-band error bound. Official source Product specification table: AC Electric Accuracy · Checked 2026-10-11
RF accuracy claim	+/-20% at 1 GHz Manufacturer specification at 1 GHz. Do not apply it unchanged to 2.4 GHz, 5 GHz or the entire RF band. Official source Product specification table: RF/Microwave Accuracy · Checked 2026-10-11
Observed device price	186 USD Official TF2 listing observed in stock on October 11, 2026; not a delivered quote. Shipping, tax and later supply are unknown. Official source Official product Product/Offer JSON-LD: SKU TF2, USD186, InStock · Checked 2026-10-11 Historical record; current verification due.

Why accuracy and a high reading are different questions

The official reference-frequency accuracy claims help define a shortlist, but they do not supply an independent full-band calibration result. A broadband RF reading alone does not identify which transmitter or frequency produced it.

Repeat comparisons only with the same mode, display type, location, source state and handling. A change after moving the meter may reflect the setup rather than a change in the source.

Manufacturer low-field recommendations are not used here as medical thresholds or a pass/fail safety score. The review does not reproduce DIY grounding or electrical modification instructions.

We checked the current official table and the ten-page v2.1 manual. No BenchPicked physical measurement or qualifying original independent performance test was conducted or admitted.

Readings you can compare

Standard versus Weighted

Standard reports field strength. Weighted MAG/ELEC emphasizes higher frequencies; keep the setting with each reading rather than treating a larger Weighted value as a worse device. For pure 50/60 Hz fields the manual says the two settings give similar numbers. RF has only its RF setting.

Field versus Peak

The large lower number is Field. The upper-left Peak retains a pulse for three seconds, replaced by a stronger pulse. Record them in separate columns or series. Neither a momentary Field nor a three-second Peak establishes a day's exposure; the screen percentage is percentage of full scale, not percentage of a safety limit.

Location, direction and handling

For MAG, record the meter's location. For ELEC and RF, also record where its top points and hold the lower half without covering the top. The manual warns that holding versus setting the meter down can change readings. Use the same handling for comparisons and note nearby objects and source operating state.

Battery and an over-range screen

The manual specifies a 9V battery; the official table quotes more than 20 hours without backlight and more than 12 with it. Audio/backlight controls sit inside the battery compartment and are operated with the meter on. A dash-style over-range screen is not zero or an exact maximum. Record over-range and use suitable equipment if you need a numeric value above the range.

Before ordering

Check the exact TF2 kit, included accessories, seller warranty and return terms before paying. The USD186 official listing is an October 11 observation, not a current delivered quote. If your task requires automatic logging, external probes or calibration records, verify those requirements separately; this browser log does not add those capabilities to the meter.

AlphaLab TF2 official product specification table

Check coverage and record an observation

Keep Standard/Weighted and Field/Peak readings separate. RF and ELEC are directional; record the same handling when comparing locations. Values entered here are your observations, not BenchPicked tests or a health assessment.

TF2 manual v2.1, pages 3-5 and 8

One owner's use case, not a reliability survey

One detailed, dated owner account was included from one audio forum thread. It illustrates a source-finding use case, not typical satisfaction, long-term durability or a recommendation to buy shielding accessories.

2021-02-03: A self-reported TF2 owner used the meter around an audio rack and nearby appliances, varying its position to investigate field readings. Later in the same discussion, the owner acknowledged that shielding can reshape a magnetic field and complicate interpretation. An audio-enthusiast discussion from January 30 to February 7, 2021. Other replies challenge the claimed listening benefits. The posts provide no controlled listening comparison or calibrated reference setup; no audible improvement, shielding effectiveness or health result is established.
Find the original report: Ownership: post 1, January 30, 2021. Technique: post 7, February 3. Qualification: post 22, February 7. Both thread pages reviewed; duplicate quotations and later replies are not extra samples.

The useful takeaway is to record position and operating conditions, not to assume that a high reading explains sound quality or requires an accessory purchase. Representative usability, long-term reliability and independent calibration remain open; no community rating is assigned.

Sample selection and limits

Both available thread pages, 27 posts, were reviewed with follow-up context. Repeated posts by the same author count once. This original factual summary links the source; it does not reproduce the discussion. The forum's republication restriction remains separate from this limited editorial use.

Another owner gave only a brief endorsement with no usable method or conditions; questions and duplicate quotations were not samples. A commercial site's terms explicitly prohibit automated extraction, so it was excluded. Another review supplied no checkable original test and misdescribed the display and weighting; a competing maker's thread failed to load. No restricted route was bypassed.

Research data and sources

Version 2026-10-12-tf2-full-page: model, market, units, operating conditions, original sources and individual check dates. Historical observations are not current delivered quotes.

Source list, research method and change history

Responsible desk: BenchPicked editorial desk. Field-level factual summaries from exact-model official text and manual page locators; source-use exclusions kept in the local review. No physical tests or borrowed-photo evidence.

Price observation: one-day review interval; specifications: 90 days. These are editorial maintenance choices, not search-engine standards. Rechecks preserve old dates; unchanged facts do not justify a new publication date.

AlphaLab TF2 official product specification table · Checked 2026-10-11 · manufacturer
AlphaLab TF2 instruction manual v2.1, copyright 2024 · Checked 2026-10-11 · manufacturer manual
What's Best Forum: dated TF2 owner discussion, posts 1, 7 and 22 · Checked 2026-10-11 · owner report

2026-10-12: Local source-based TF2 research candidate and measurement-record tool; not a published revision.
2026-10-12: Local full-page consolidation, reference-frequency correction, content revision metadata and reader-log correction workflow. Original source and owner dates preserved; not a published revision.

The September 24 category record is historical, not the current reference: historical category JSON · historical category CSV. Its abbreviated electric accuracy omits the reference frequency. The official claim is +/-5% at 50/60 Hz, not a full-band error bound. The current exports above retain this condition; the dated original files are unchanged.

Specification profile & published audit matrix

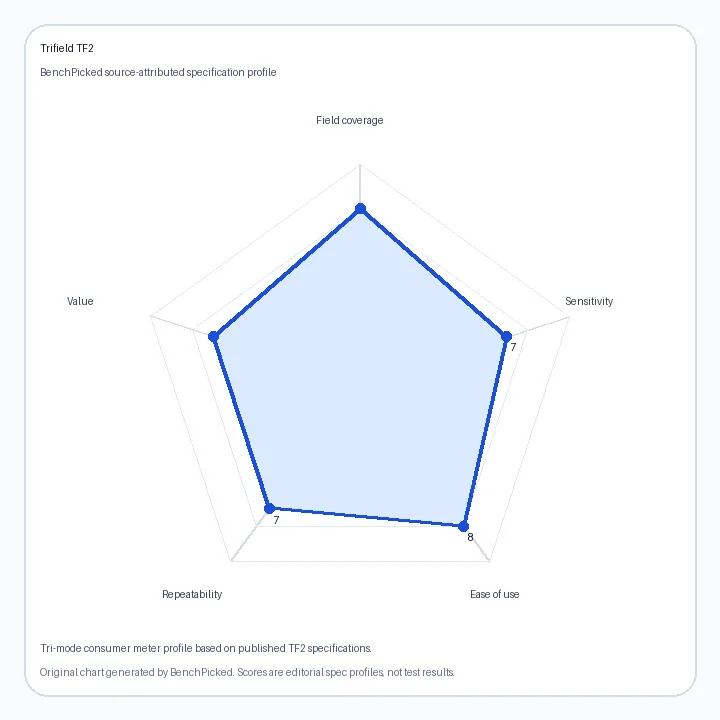

Trifield TF2 specification radar chart — BenchPicked analysis based on source-attributed specifications

Visual guide

Trifield TF2 three measurement modes with frequency ranges — BenchPicked mode overview based on manufacturer specifications

Earlier specification record and correction

This preserves the earlier source-attributed record, not independent test data. The electric accuracy value is qualified here by its official reference frequency; the original September 24 downloads remain historical.

Published specification source table
Spec field	Source-attributed TF2 value	Source basis
Field modes	AC magnetic, AC electric, and RF fields in one handheld consumer meter	Manufacturer product page
AC magnetic range	40 Hz to 100 kHz	Manufacturer specification sheet
AC electric range	40 Hz to 100 kHz	Manufacturer specification sheet
RF range	20 MHz to 6 GHz	Manufacturer specification sheet
Published magnetic accuracy	±4% at 50/60 Hz	Manufacturer specification sheet
Published electric accuracy	+/-5% at 50/60 Hz (manufacturer specification; earlier shorthand: ±5%)	Manufacturer specification sheet
Published RF accuracy	±20% at 1 GHz	Manufacturer specification sheet
RF power-density range	0.001 to 19.999 mW/m²	Manufacturer specification sheet
Magnetic axis context	3-axis magnetic measurement	Manufacturer specification sheet
Power	9V alkaline battery	Manufacturer specification sheet
Use case	Home screening and relative comparisons rather than professional compliance surveys	BenchPicked measurement boundary
Review boundary	Buying fit uses documented modes, frequency ranges, compatibility, and price; measured accuracy needs separate evidence	BenchPicked editorial criteria

This table is a source-attributed spec record, not a BenchPicked reading log.

Related buying option

Trifield TF2

Check the TF2 listing on Amazon for current price, included accessories and delivery options.

Why this option is listed

The approved offer matches a product need already covered on this page. Treat it as a buying option, then compare its documented fit, current terms, and available alternatives before ordering.

Evidence limit:This is a buying option for the TF2 model, not evidence of independent testing or health outcomes.

Confirm before checkout

The model and included accessories match the product described here.
Shipping, return, warranty, and recurring-cost terms fit your location.
The seller source supports the specific feature that matters to your decision.

Check price on Amazon^*

(paid link) We may earn a commission from Amazon. Price and availability may change.

Common questions

What does the Trifield TF2 measure?

The Trifield TF2 is sold as a consumer meter for AC magnetic, AC electric, and RF fields. BenchPicked evaluates those modes separately because each field type uses different units and reading behavior.

Can the Trifield TF2 measure 5G signals?

The TF2 can detect RF signals inside its published RF range, including many sub-6 GHz wireless sources. It should not be treated as a mmWave 5G survey instrument.

When is the TF2 worth considering?

Consider it when its documented RF, magnetic, and electric modes cover your home-screening needs. Compare the manual, frequency ranges, display functions, and current price; do not choose it for measurements outside those ranges.

Is the Trifield TF2 a good all-in-one EMF meter?

It is a practical shortlist candidate when you need RF, AC magnetic, and AC electric screening in one handheld meter. That convenience does not establish lab-grade accuracy, coverage outside its published ranges, or suitability for professional compliance work.

Does BenchPicked decide whether EMF exposure is safe?

No. BenchPicked explains physical field concepts and product claims separately from health risk. We do not diagnose, evaluate personal risk, or make health-effect claims.
